1. Excellent industrial-grade product design ensures reliable printing output and achieves super stability of the whole machine

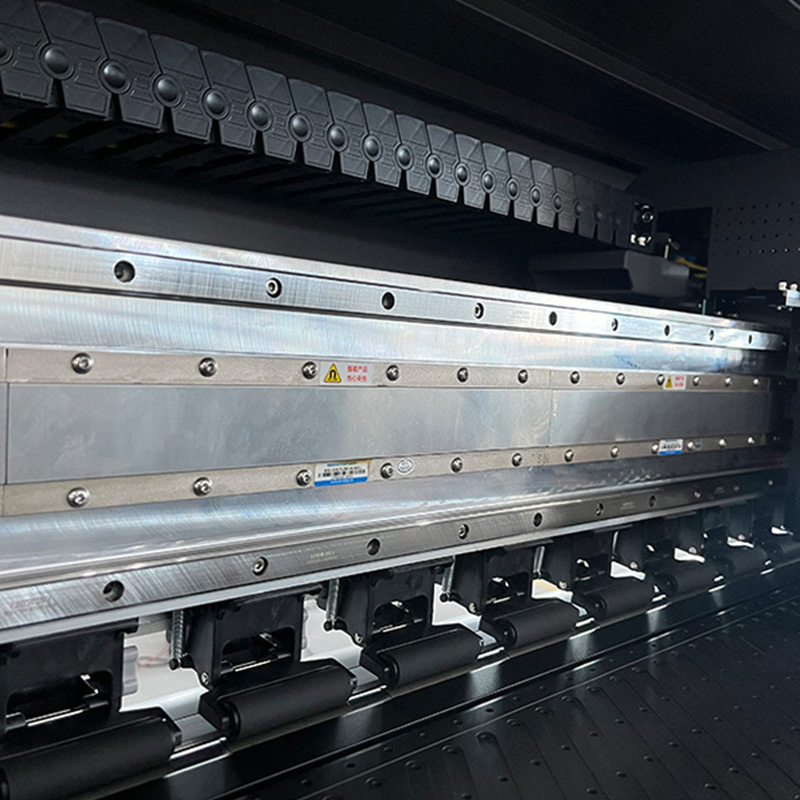

2. Adopts ultra-high precision silent guide rails of internationally renowned brands, high-speed and long-lasting operation, no differential sliding, and accurate synchronization of ink dot placement

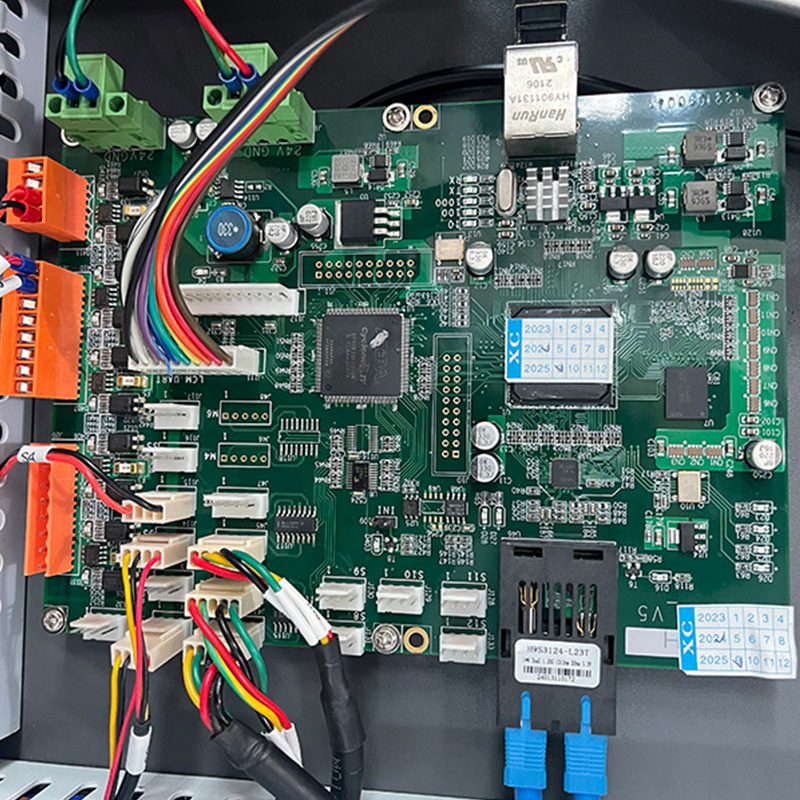

3. Industrial precision circuit design, safe, stable and reliable
4. Intelligent heating in the front, middle and back sections ensures that the ink is perfectly matched with the media in different environments without ink accumulation

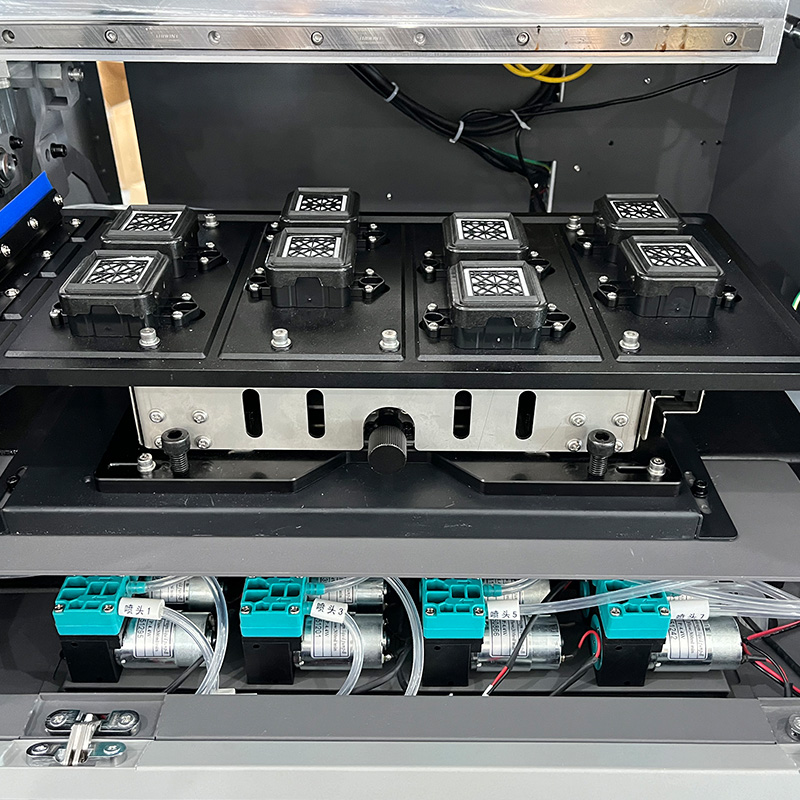

5. Multiple nozzle anti-collision protection system provides reliable guarantee for long-term stable work.
6. Intelligent paper shortage and ink shortage alarm, drying system, automatic start and stop function, realize continuous unattended work
Model: X6-GY1804/X6-GY1808
Nozzle: I3200
Number of nozzles: 4 or 8/pc
Maximum printing width: 1800mm
Printing speed: (4PASS 60-200m²/h), (6PASS 41-136m²/h)
Ink type: thermal transfer ink
Ink color: C, M, Y, K, LC, LM, LK, LLK

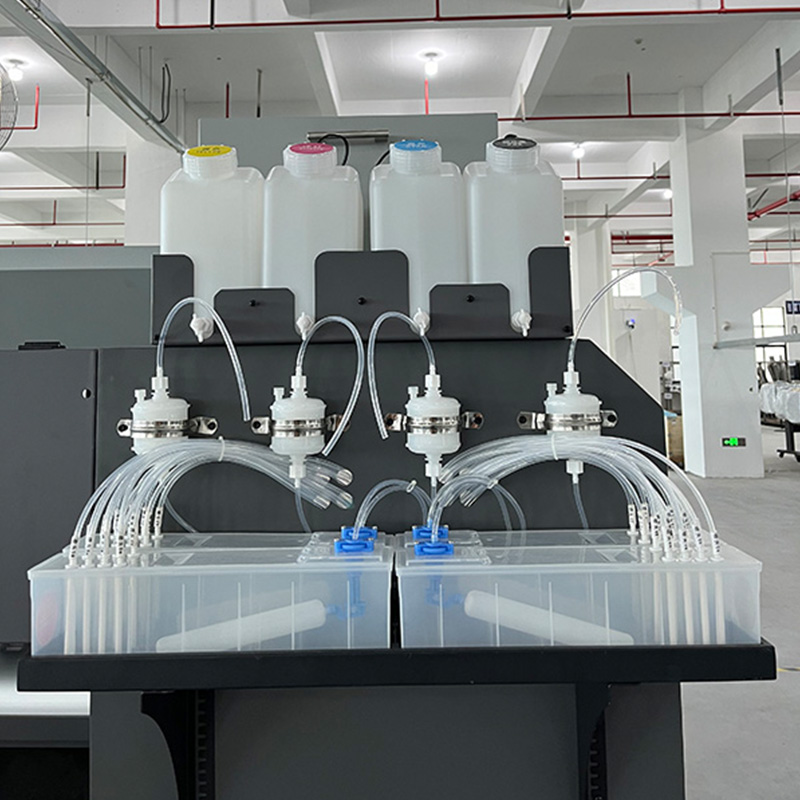

Ink supply method: negative pressure ink supply
Printing height: 1.5mm - 3mm adjustable
Material weight that can be supported: 75KG/200KG
Printing medium: thermal transfer paper

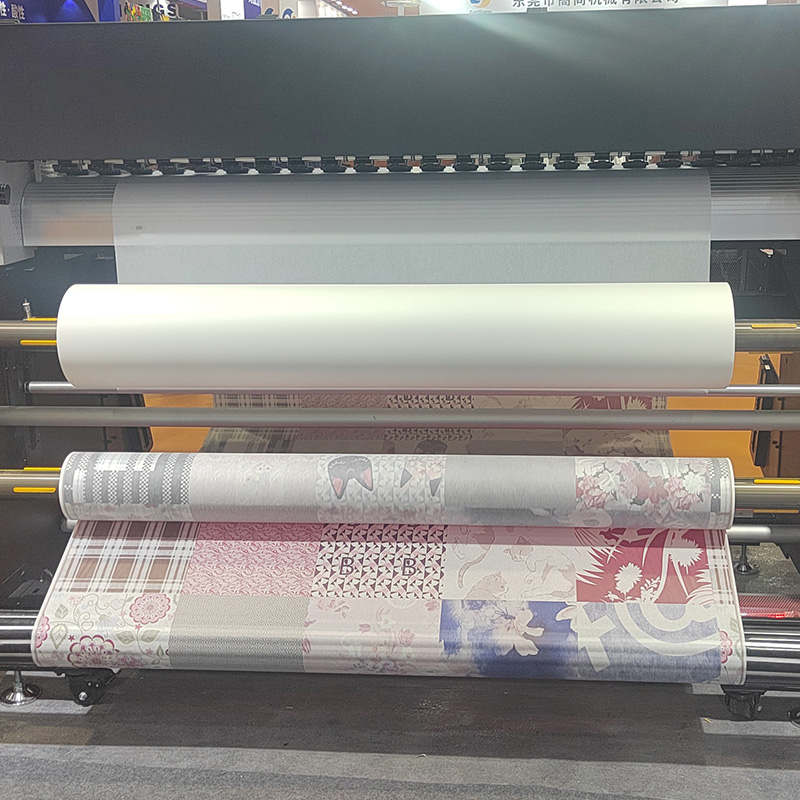

Retracting and releasing system: intelligent air-expanding shaft paper-retracting system
Drying system: intelligent hot air integrated drying
Printing port: network port
RIP Software/Software: Mengtai 6.1 Textile Edition
Machine power: 2400W
Infrared heating power: 3600W
Power supply parameters: AC220V±10%.50/60hZ
Working environment: Temperature: 20℃ - 35℃ Humidity: 45%Rh- 65%Rh
Machine size (mm): L4076×W2620×H2024
Wooden box size (mm): L4160×W1400×H2120
Net weight (KG): 400KG/835KG
Gross weight (KG): 420KG/850KG
