1. Set multiple printing modes to quickly adapt to printing of various materials with different weights without frequent parameter settings
2. Imported electrical components use Japan Mitsubishi's PLC industrial-grade control module and OMEON relay system to ensure the stability of the equipment

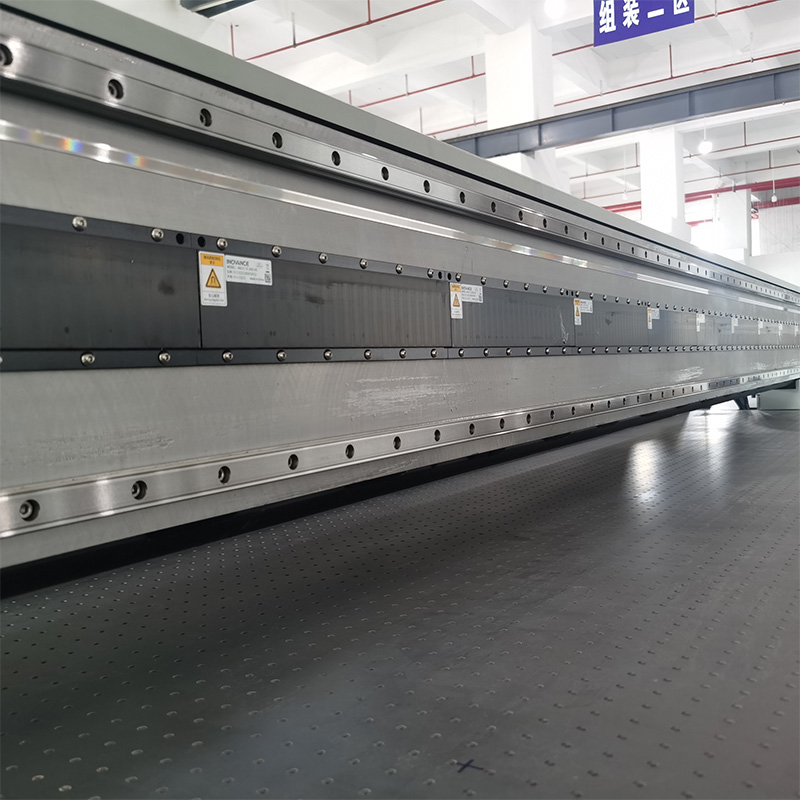

3. The X-axis movement direction uses a linear motor (magnetic levitation) drive, which has higher precision and more stable performance

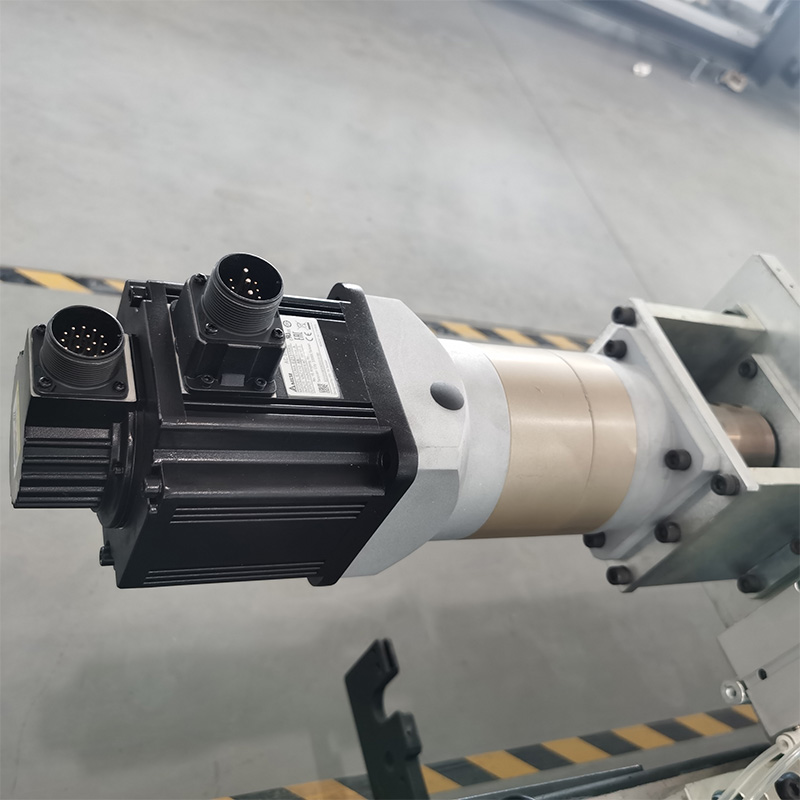

4. The cloth feeding system uses a high-precision reducer and a large transmission roller configuration to ensure accurate and stable cloth feeding

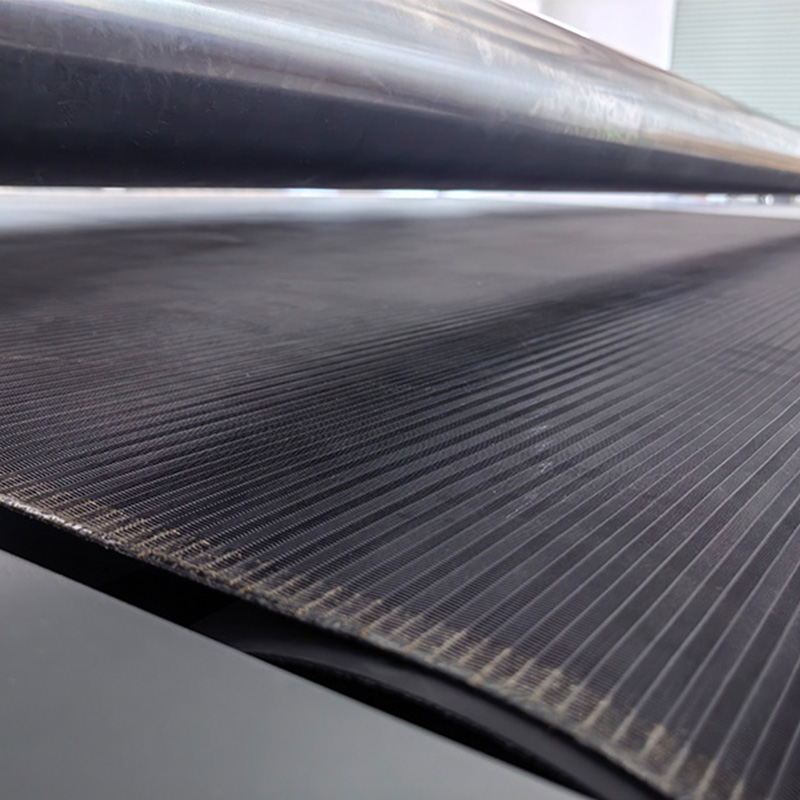

5. Use an international first-class mesh belt system to improve printing quality and stability
6. Anti-static device to remove static electricity on the surface of the medium and reduce ink flying treatment, improve and meet high-quality printing quality
7. Color white varnish, a variety of solutions, create unlimited possibilities
8. Use imported metal grating rulers with an accuracy of up to 1um to ensure printing accuracy

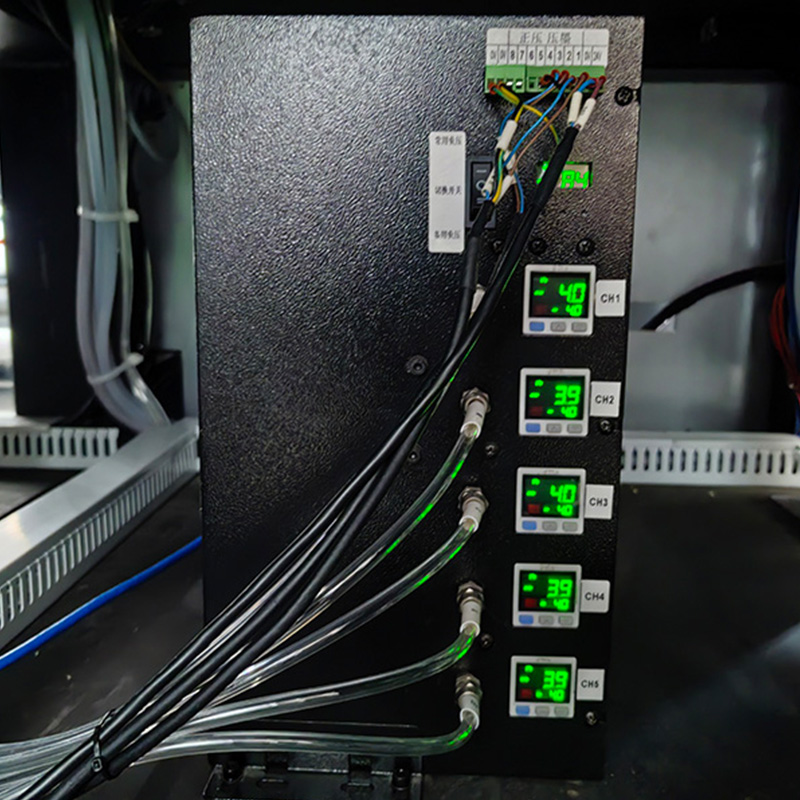

9. Intelligent double negative pressure ink supply system to ensure ink Stable output and continuous operation
10. Monochrome ink pressing system, automatic height measurement system

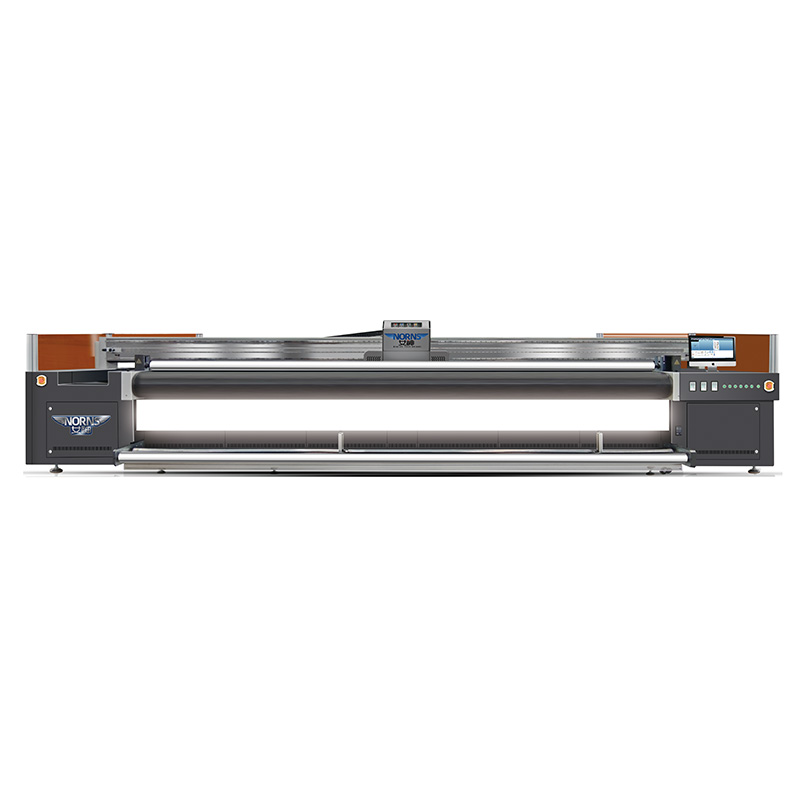

Machine model: X6-5000UV/3200UV
Nozzle model: KM1024A/I, Ricoh G6
Printing size: 5000mm/3200mm
X-axis head movement mode: linear motor (magnetic levitation)
Curing method: UV LED lamp
RIP software: PP/0NYX/PF
Media thickness: 1-50mm
Number of nozzles: 4-24
Ink type: Xuli brand special UV ink
Ink color: C, M, Y, K, LC, LM, W, V
Printing accuracy: (720x360dpi 967x600dpi 720x1800dpi 976x1800dpi)
(720x720dpi 967x1200dpi 720x1440dpi 976x2400dpi)
Printing mode: 4pass (65-245m²/h)
6pass (45-150m²/h)
8pass (28-110m²/h)
Dimensions: L7500xW2000xH1650mm/L5420xW1400xH1600mm
Net weight: 5632.6KG/1850KG
