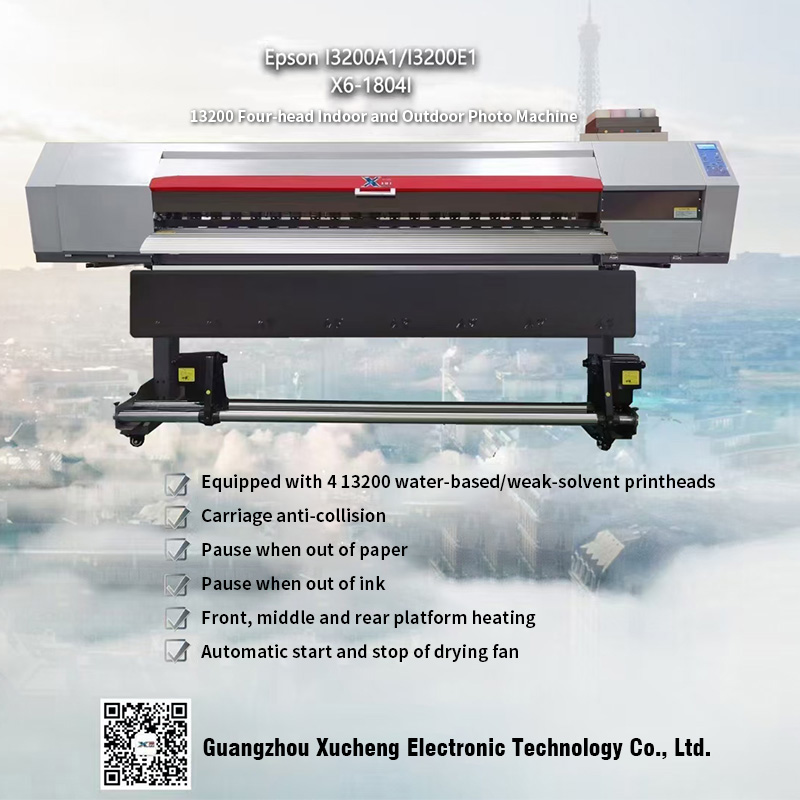

Xuli Digital Advertising Photo/Packaging Printing Machine
X6-1802I/1804I/1806I/1808I
1. Excellent industrial-grade product design ensures reliable printing output and achieves super stability of the whole machine

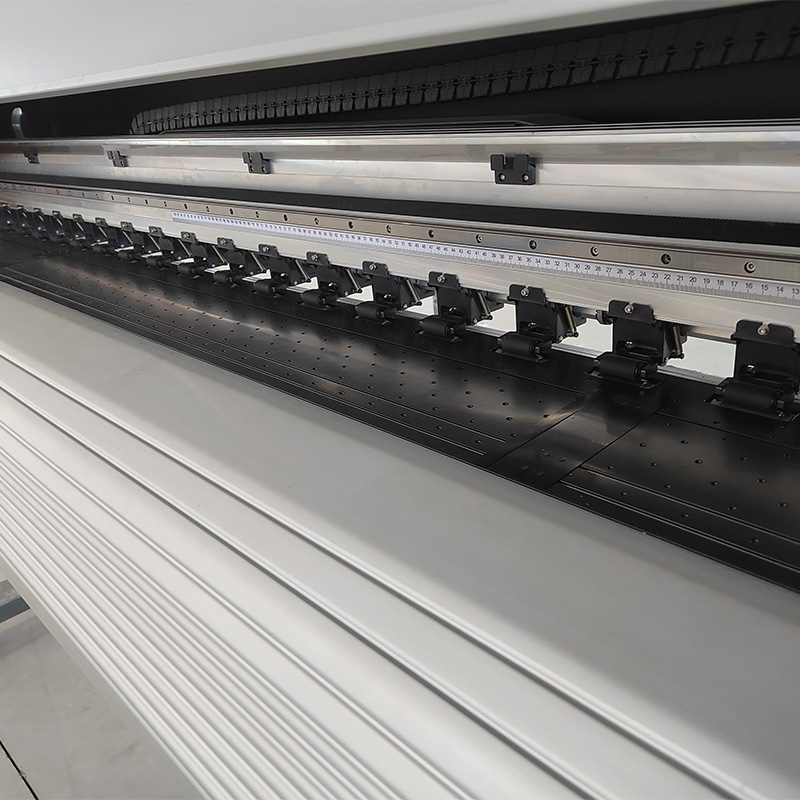

2. Adopts ultra-high precision silent guide rails of internationally renowned brands, high-speed and long-lasting operation, no differential sliding, and accurate synchronization of ink dot placement

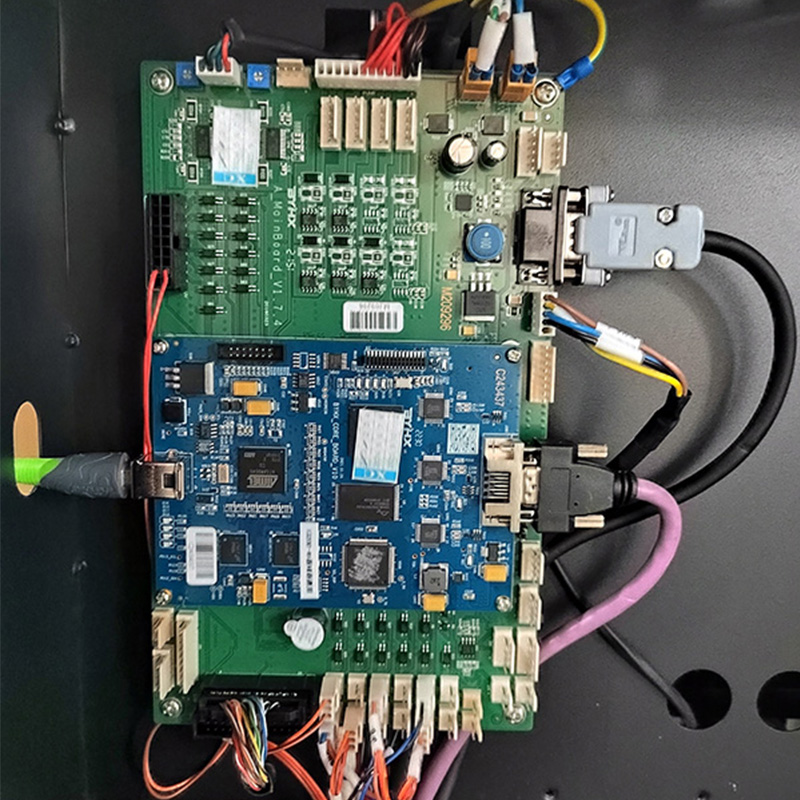

3. Industrial precision circuit design, safe, stable and reliable
4. Multiple anti-collision protection provides reliable guarantee for long-term stable work
5. Intelligent paper shortage, ink shortage alarm, drying system, automatic start and stop function, to achieve continuous unattended work
Model: 1.8m writer
Nozzle: 13200A1/I3200E1
Number of nozzles: 2-16/pc
Maximum printing width: 1800mm
Printing speed: (4PASS 31-200m²/h) (6PASS 21-136m²/h)
Ink type: water-based/weak soluble ink
Ink color: C, M, Y, K, LC, LM, LK, LLK
Ink supply method: positive pressure ink supply
Printing height: 1.5mm-5mm adjustable
Material weight that can be supported: 75-200KG
Printing media: leather, canvas, light cloth, car stickers, photo paper, PP paper, silk cloth, etc.

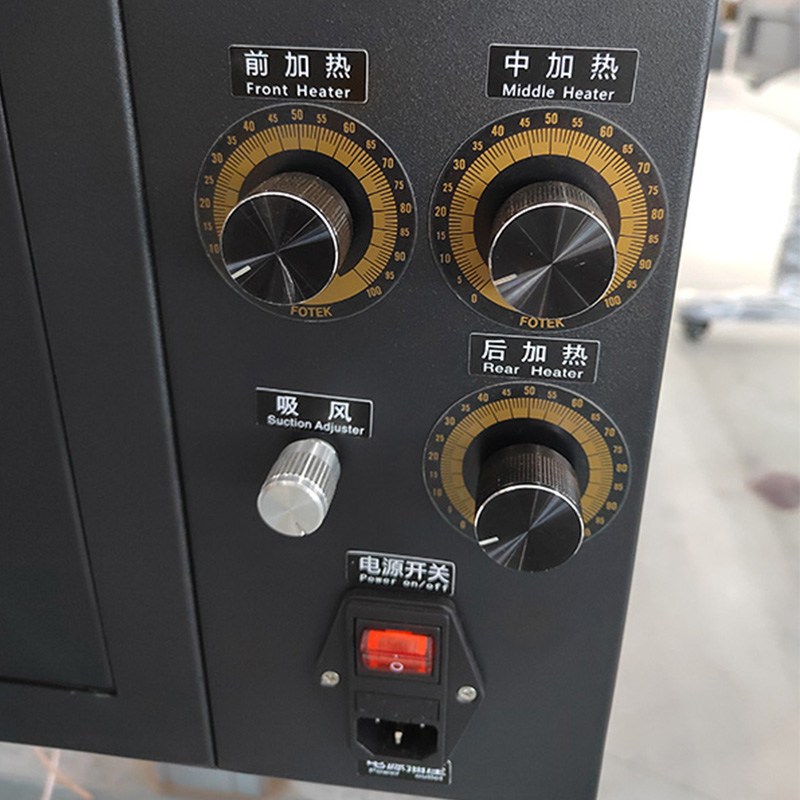

Platform heating: front, middle and back
Printing port: Gigabit network interface
Paper collection system: dual motor automatic paper collection system
Drying system: infrared drying system (with automatic start and stop)
RIP Software/Software: Maintop, Photoprint
Power: 800-2400ww
Working environment: temperature: 20℃-35℃, humidity: 35%RH-65%
Power parameters: AC110V±10%.AC220V±10%.50/60hZ
Machine size (mm): 2960×W1000×H1550
Wooden box size (mm): L3010×W1050×H710
Net weight (KG): 357-835KG
Gross weight (KG): 390-850KG
