1. Excellent industrial-grade product design ensures reliable printing output and achieves super stability of the whole machine.

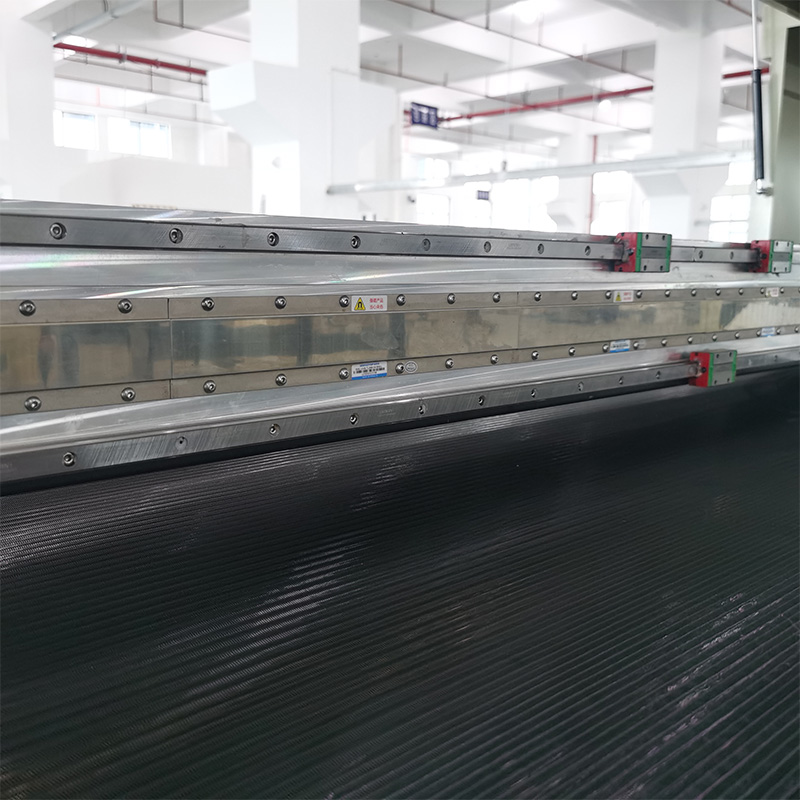

2. Adopts internationally renowned brand ultra-high precision sound guide rails, high-speed and long-lasting operation, no differential sliding, and accurate synchronization of ink dot placement.
3. Industrial precision circuit design, safe, stable and reliable.
4. The X-axis adopts a well-known brand linear motor, with a two-way repeated positioning accuracy of up to 10um, accurate ink dot placement, and less noise when the trolley moves.
5. Multiple anti-collision protection provides reliable guarantee for long-term stable work.

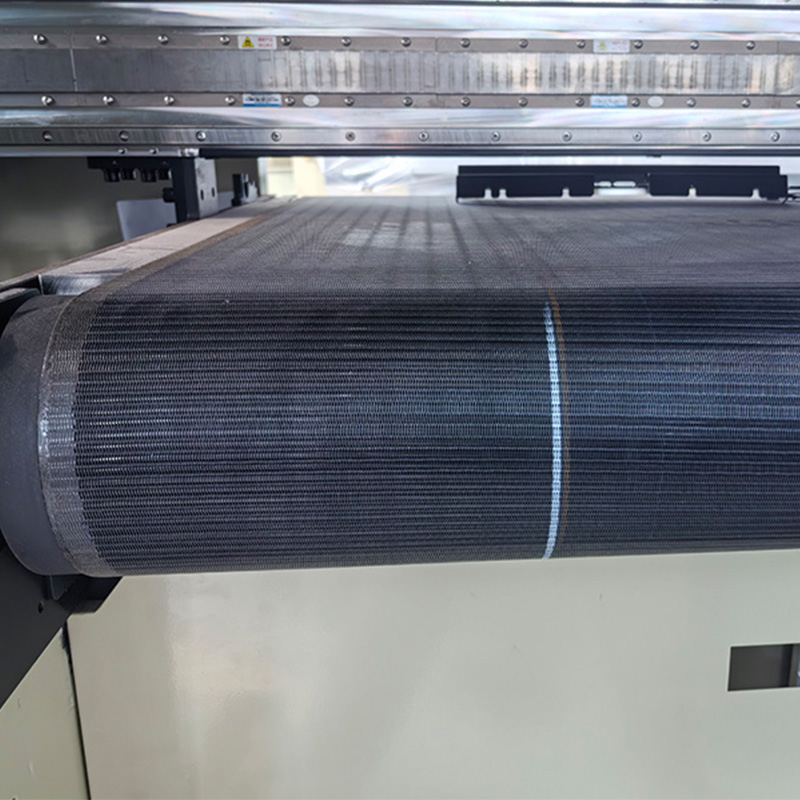

6. Adopts a pull-up mesh belt that is not easy to deform, suitable for printing on a variety of media.

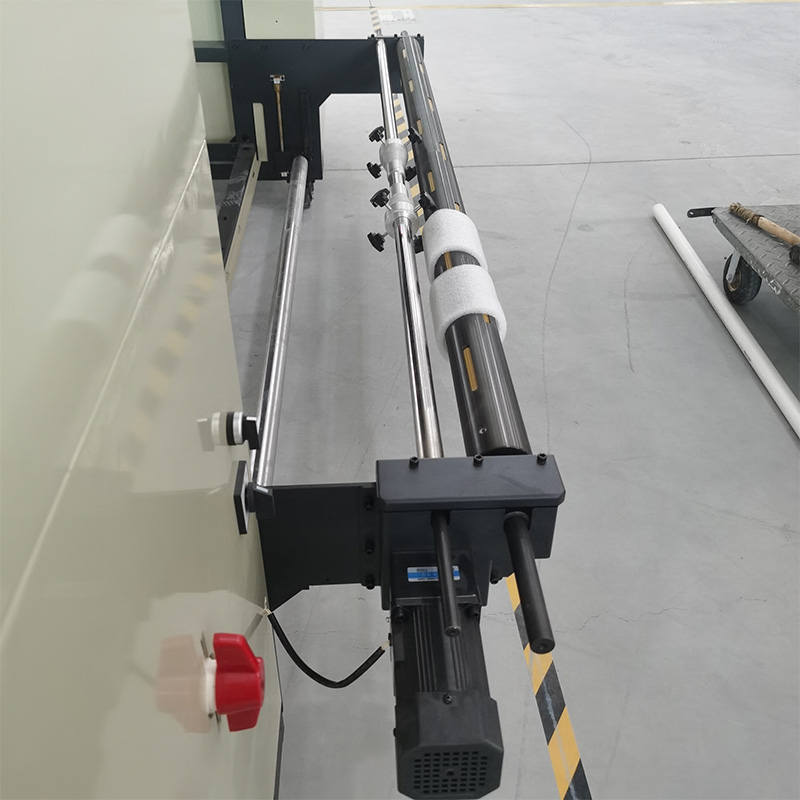

7. Professional multi-rod cloth-releasing shaft ensures more accurate tension and smooth printing of the conveying medium.

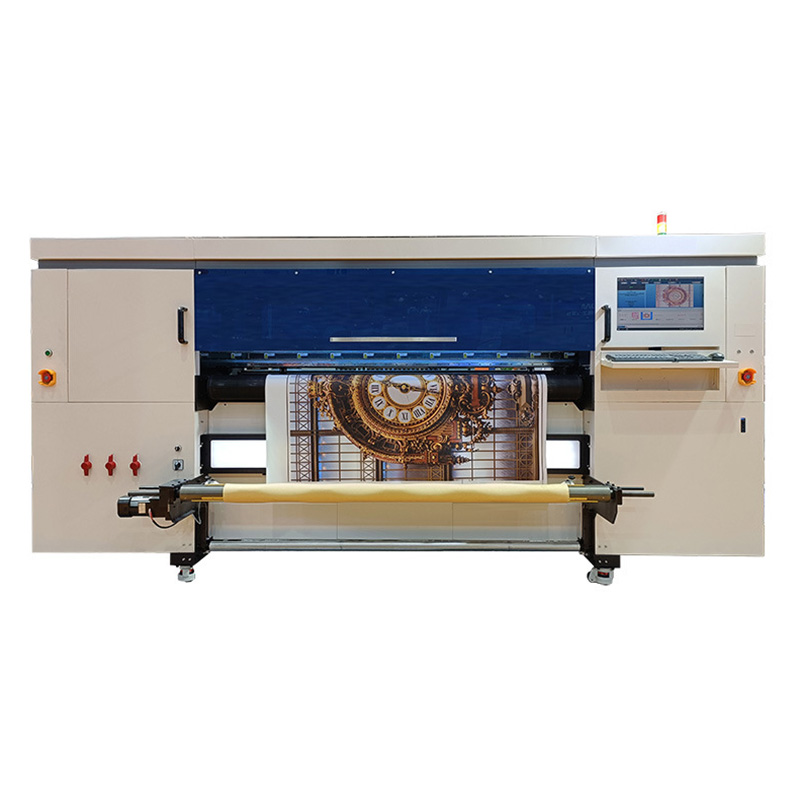

Model: 1.8m magnetic suspension 5-8 heads UV mesh belt machine A6-1908WLUV
Nozzle: G5/G6/I13200-U1
Number of nozzles: 5/8
Maximum printing width: 1800mm
Printing speed: 4pass 52m²/h
6pass 35m²/h
Ink type: UV ink

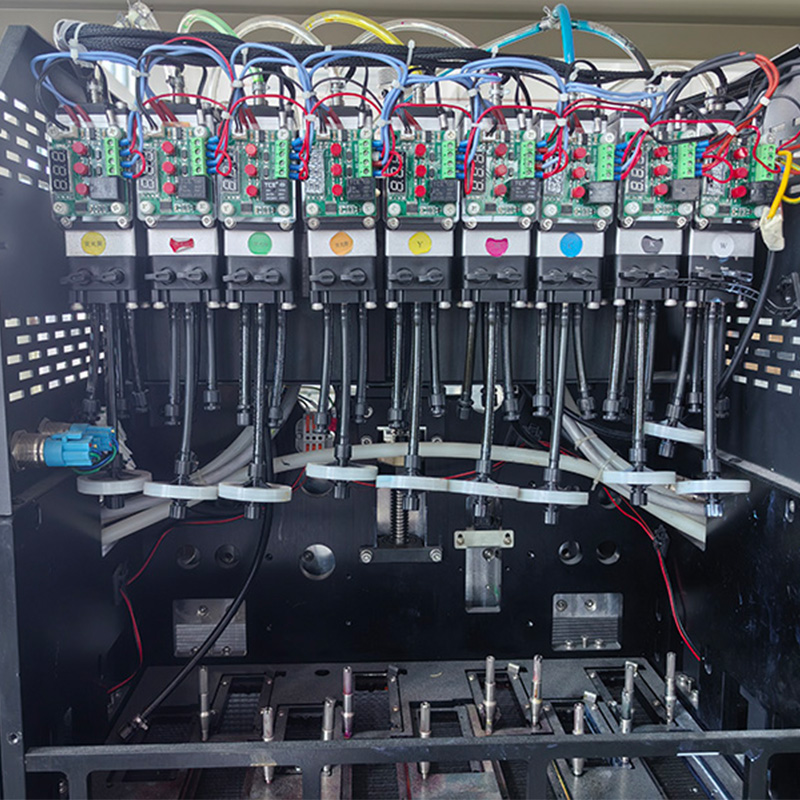

Ink supply method: positive pressure ink supply
Printing height: 1.5mm-3mm adjustable
Printing media: canvas, soft film, PP/PE/leather, floor mat, silk coil and other media
Paper collection system: leather-specific intelligent collection and release system (air expansion shaft + dual motor automatic paper collection)
RIP Software/Software: Maintop, Photoprint
Machine power: 800w
Infrared heating power: 3800w

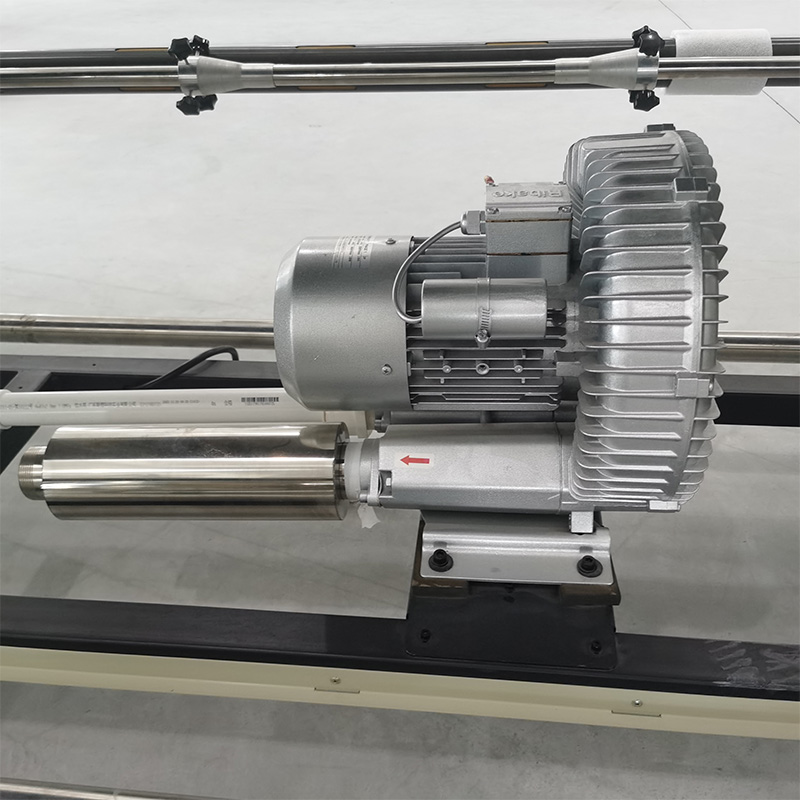

Blower power: 1500w
Power supply parameters: AC22V±10%, 50/60HZ
Working environment: temperature: 20℃-26℃, humidity: 35%RH-65%RH
Body size (mm): L3600*W1340*H1650
Outer box size (mm): L3660*W1600*H1780
Net weight (KG): 860KG
Gross weight (KG): /
