Xuli UV Mesh Belt/Flatbed Machine XULI-7200MAX/5300PLUS/3200PLUS
XULI-7200MAX/5300PLUS/3200PLUS

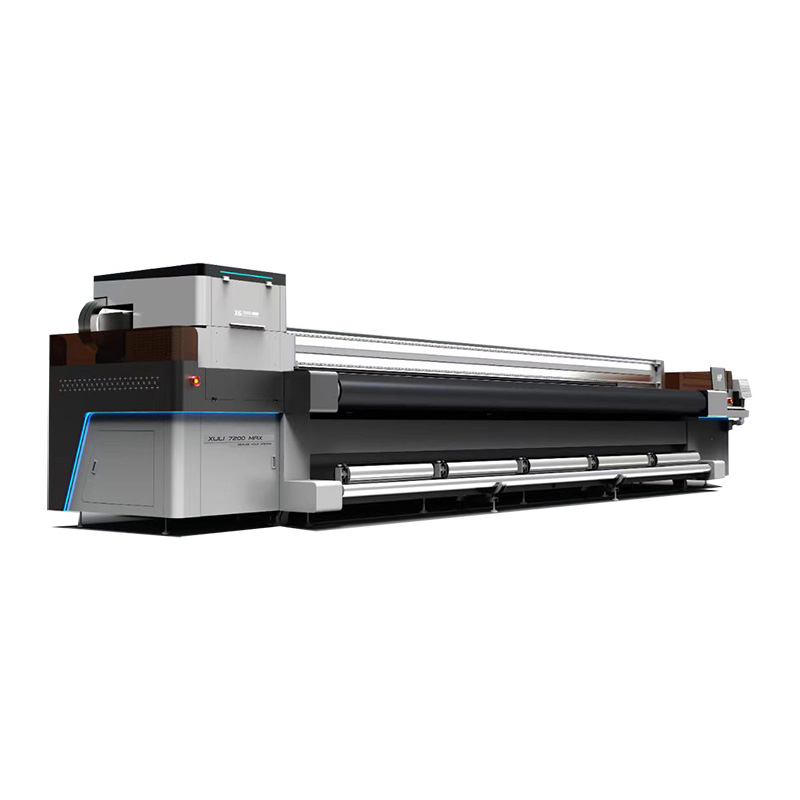

Xuli 7200max is the first of the heavy-duty machines, and it is launched in the Year of the Dragon.
7.2 meters ultra-wide, 12.8 tons, ultra-heavy UV industrial printer.
Xuli 7200max has a total size of 10.8 meters wide, 2.6 meters long, and 2.2 meters high.
The appearance is simple and elegant, the structure is scientific and reasonable, and the size of the whole machine is proportionally increased, rather than the traditional concept of elongated size, to ensure stability.

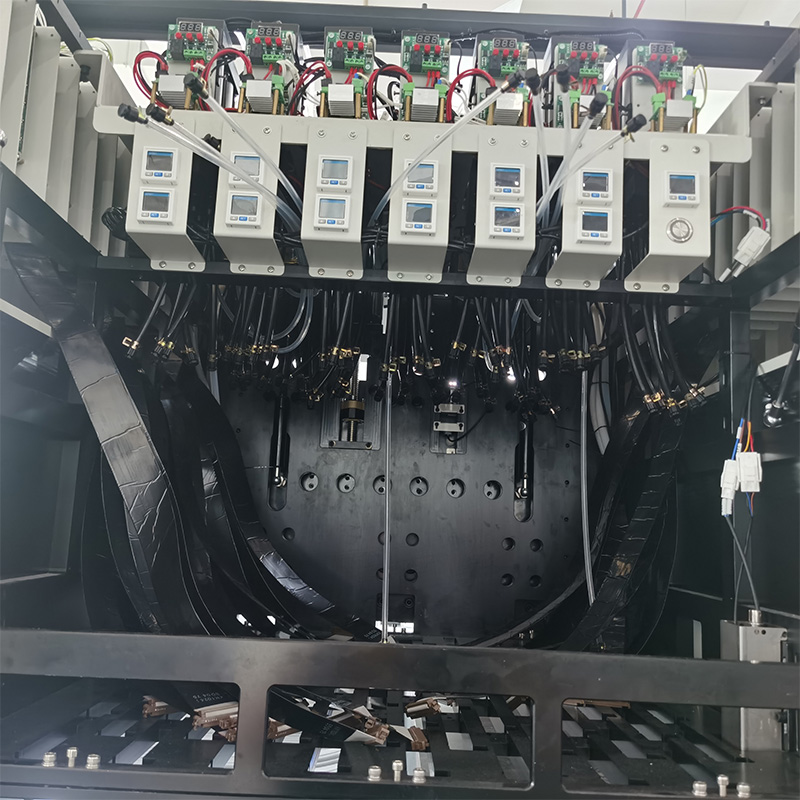

It can carry nine rows of Konica 1024i1024a.
Sixty-three nozzles to ensure printing speed. Printing in external light mode, up to 545 square meters per hour.

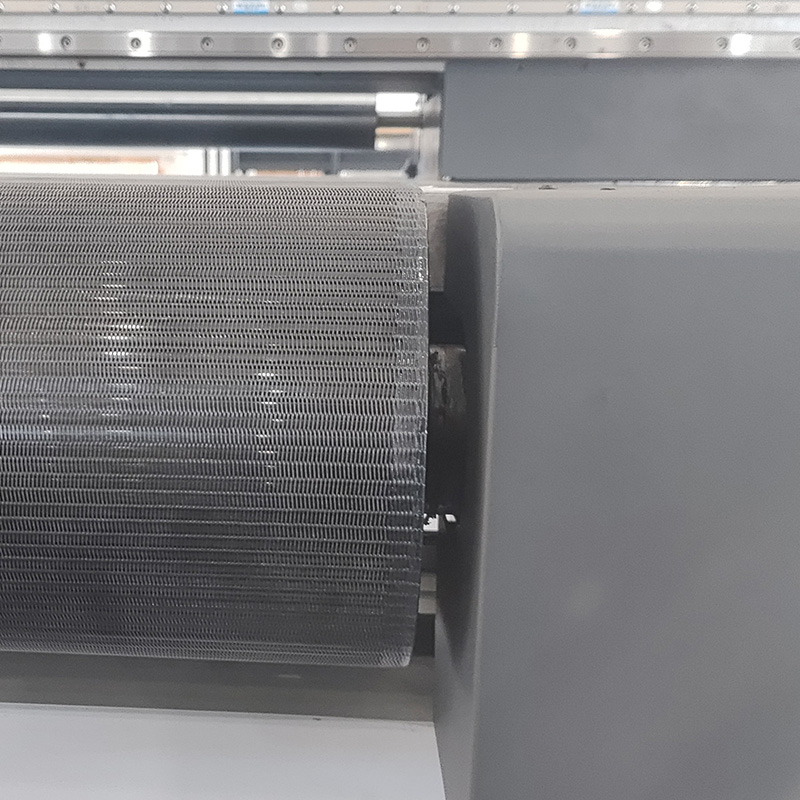

The diameter of the mesh belt rubber roller is expanded to 330 mm, instead of the traditional 290 mm.
The platform Xifeng can achieve independent variable frequency adsorption in ten areas.
The single aluminum alloy printing work platform is widened to 3650X1700 mm.
The mesh belt material is precisely controlled, and the imported stepping motor is driven by the sensor.
Real-time monitoring of the retracted and unreeled materials is carried out, and the automatic deviation correction double end double negative pressure cycle is perfectly realized.
Ensure stable and smooth foam supply. Software controls automatic ink shut-off.
While saving time, the printhead status can also be in the best state in real time.
Precise color management makes the colors more realistic.
1. Maximum printing width of 7.2 meters, integrated plate and roll, creating unlimited possibilities

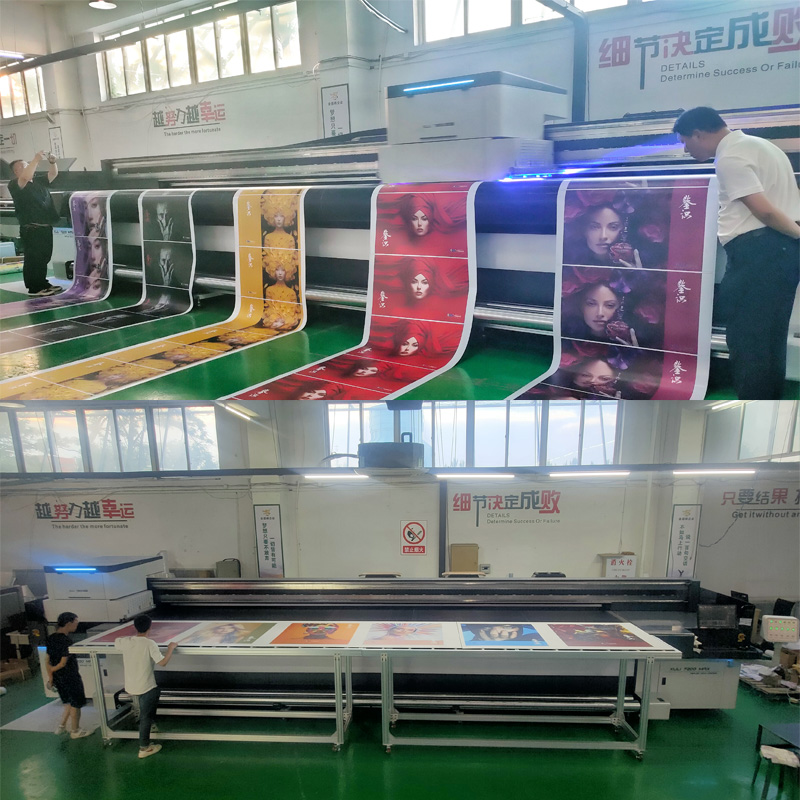

2. Can print 5 rolls of 1.2-meter-wide materials at the same time, improving production efficiency

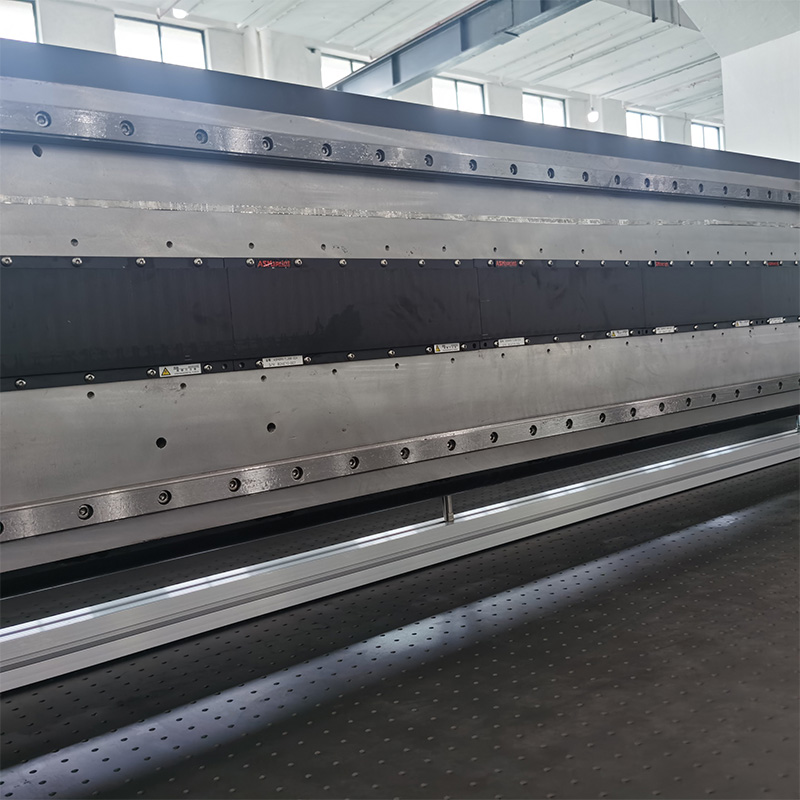

3. Adopt imported metal grating ruler with an accuracy of up to 1µm to ensure printing accuracy.

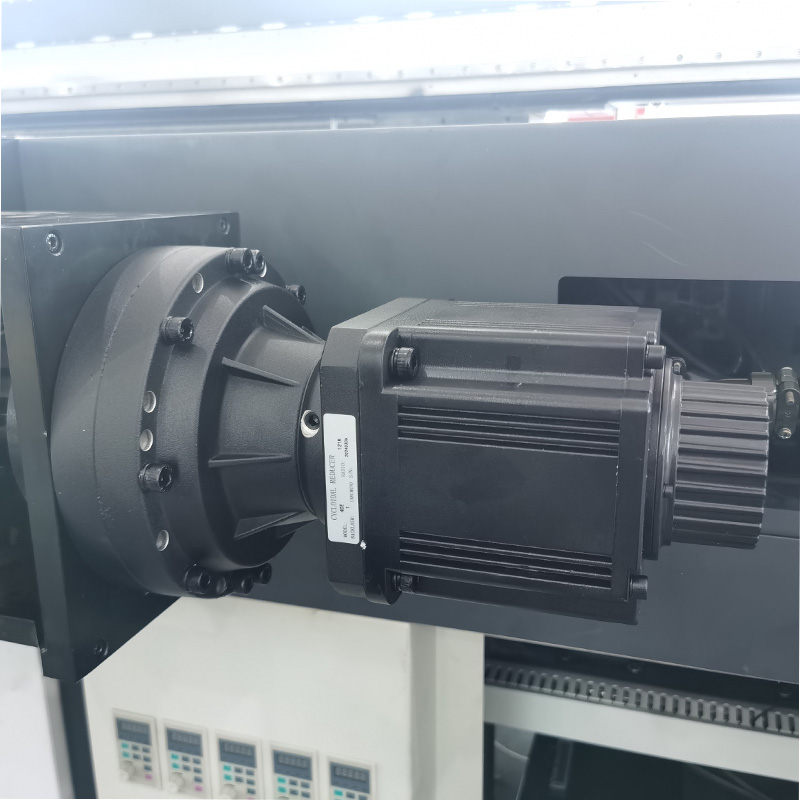

4. Dual motor servo drive, high-level steady progress to complete high-quality printing
5. The platform suction frequency conversion is divided into 10 zones, which is scientific and reasonable to make printing more convenient
6. Automatic deviation correction function of the mesh belt
7. Color separation and ink pressing do not waste ink
8. Automatic ink scraping makes operation more convenient
9. 2-9 row head industrial design makes printing fly
Model: XULI-7200MAX/5300PLUS
Nozzle: KM1024I 4-63
Maximum printing width: 7200mm/5300mm/3200mm
Printing speed: (3PASS 150-700m²/h)
(4PASS 115-568m²/h)
(6PASS 76-380m²/h)
Ink type: Xuli brand special UV ink
Ink color: C, M, Y, K, LC, LM, W, V
Ink supply method: independent negative pressure ink supply
Printing height: 70mm
Printing media: light cloth, car stickers, mesh cloth, soft film, wall cloth and other roll-to-roll indoor and outdoor materials and plates
UV lamp: LED curing
RIP Software/Software: Caldera/PP/Onyx
Power parameters: AC220V±10%, 50HZ~60HZ
Working environment: temperature 20-26°, humidity 40-60%
Body size (mm): L10840*W2630*H2220
Outer box size (mm): /
Net weight (KG): 12000KG/7000KG/1850KG
Gross weight (KG): Add packaging weight
